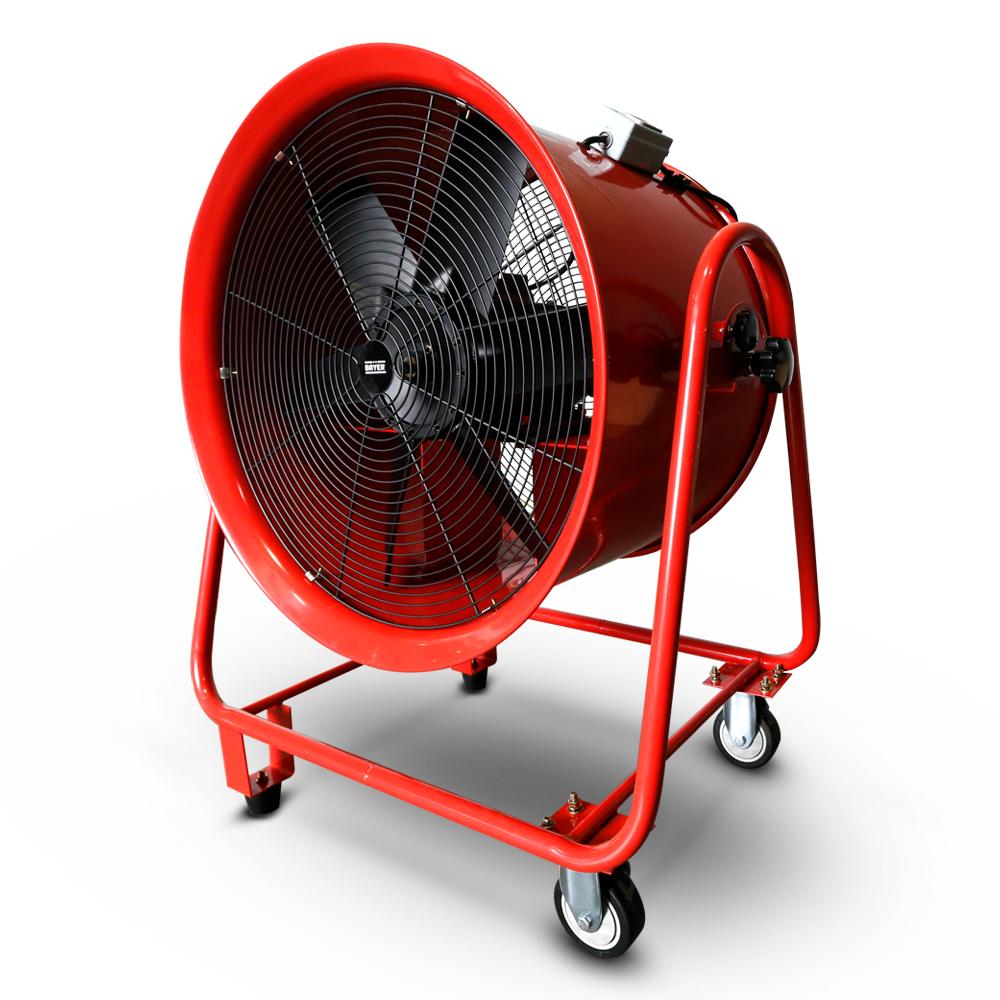

600mm Ventilation Extraction Fan

The Bayer 600mm (24″) Dust Extractor Ventilator Fan delivers powerful, reliable ventilation for both demanding job sites and home applications. Designed to be lightweight and portable, it is easy to transport and set up wherever it’s needed. The fan features reversible airflow, allowing it to be used for either air intake or exhaust, while its heavy-duty blades and robust housing are built to withstand high pressure and deliver a large volume of air. Ideal for industrial, commercial, and domestic use, this ventilator is also highly effective for ventilating confined or enclosed spaces. Features:

• Easy to Transport: Easy to move and transport between job sites or around the home
• Good insulation: Ensures electrical safety and supports long-term reliable use
• High pressure: Powerful airflow output for effective ventilation over long distances
• Large air volume: Moves up to 240m³ of air per minute, ideal for large or open spaces
• Can be used to ventilate closed spaces: Perfect for confined areas like basements, tunnels, and containers
• Durable fan blades and housing: Built strong for industrial use and continuous operation
• Reversible airflow: Can be used for either air intake or exhaust, depending on the job
• Heavy-duty 2200W motor: Offers consistent performance for demanding ventilation needs
• Low RPM (1400rpm): Delivers strong airflow while helping maintain motor efficiency

Applications:

• Ventilating construction sites
• Removing fumes or dust in workshops
• Drying large damp areas
• Circulating air in warehouses
• Ventilating closed spaces like containers or tunnels

Specifications:

• Fan Diameter: 600mm (24″)
• Rated input power: 2200W
• Voltage: 240V
• Frequency: 50/60Hz
• RPM: 1400rpm
• Speed: Single
• Air flow: 240m³/min
• Wind Pressure: 120pa
• Type: Portable
• Noise Level: 92dB
• Blades: 6
• Working Temperature: -10ºC – 40ºC
• Dimensions (L x W x H): 780mm x 460mm x 900mm
• Weight: 34kg
